100GHz AWG Module Athermal Module DWDM AAWG ITU Compliant for DWDM Networks

Advanced 100GHz DWDM AAWG 40 or 48CH Athermal Module ITU Compliant Low Insertion Loss and High Isolation for DWDM Networks

Introducing our Advanced 100GHz DWDM AAWG 40 or 48CH Athermal Module, a top - tier solution for DWDM networks. Compliant with ITU standards, it features a unique athermal design, ensuring stable performance across various temperature conditions. With low insertion loss, it minimizes signal attenuation during transmission, enabling efficient data transfer. High isolation effectively prevents crosstalk between channels, guaranteeing reliable and high - quality DWDM network operations.

HJY’ s Wavelength Division Multiplexer (WDM) is based on AWG technology. This proven technology offers wide channel bandwidth, flexible channel configuration, low insertion loss, and high isolation. This DWDM series modules are passive optical multiplexer/demultiplexer designed for metro access applications that represent the state of the art in fiber optics design. This Mux/Demux module multiplexes and demultiplexes multiple DWDM wavelengths of 100GHz channel spacing into a ring or point-to-point network, ideal for telecommunications and networking.

HJY’s Dense Wavelength Division Mux/Demultiplexer Athermal Arrayed Waveguide Grating(AAWG) Modules are part of a series of high performance products based on silica-on-silicon planar technology and a unique athermal packaging design requiring no electrical power, software or temperature control for a completely passive DWDM solution. This product range offers a combination of very low loss and high channel isolation along with long term reliability .Each module can perform Mux and Demux functions. Both C- and L-band devices are available with flat top spectral response. Custom frequency grids, fiber types and connector options are also available

Features	Applications
• Low insertion loss • High isolation • Low PDL • Compact design • Good channel-to-channel uniformity • Wide operating wavelength • Wide operating temperature: -20 to70℃	• DWDM system • PON networks • CATV links • Fiber optical amplifier • Wavelength routing

Product Parameters

Parameter			Unit	Specifications
ITU Band			GHz	ITU, C-band
Channel Spacing			GHz	100
Number of channels				40CH	48CH
Wavelength accuracy		Max	nm	0.05
Insertion Loss	Waves	Max	dB	3.5	4.0
-1dB passband		Min	nm	0.3
-3dB passband		Min	nm	0.5
Isolation	Adjacent Channel	Min	dB	25
	Non-adjacent Channel	Min	dB	30
Total Crosstalk		Min	dB	23
Ripple in Passband		Max	dB	0.75
Polarization Dependent Loss		Max	dB	0.5
Uniformity		Max	dB	1.5
Directivity		Min	dB	50
Return Loss		Min	dB	45
Polarization Mode Dispersion		Max	ps	0.5
Power Handling		Max	mW	300
Fiber Type				Corning SMF-28 / SMF-28e or customize
Operating Temperature			°C	5~70
Storage Temperature			°C	-40~85
Package		Weight		0.5kg
		Dimensions	mm	(L)120×(W)70×(H)12.7

Note: 2>Specified with connectors.

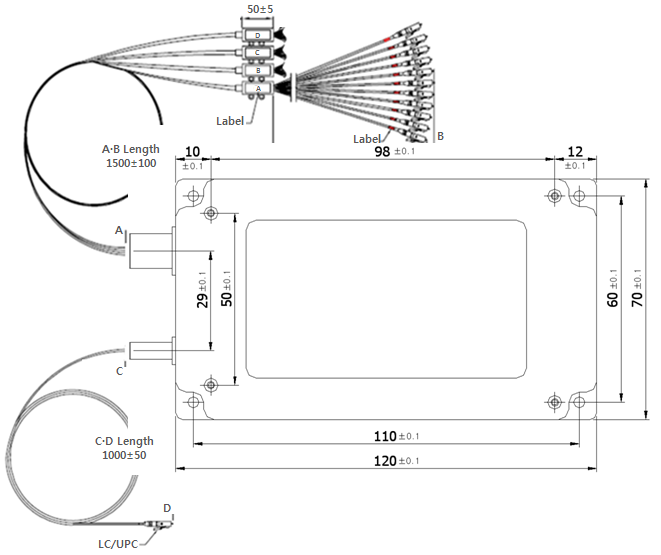

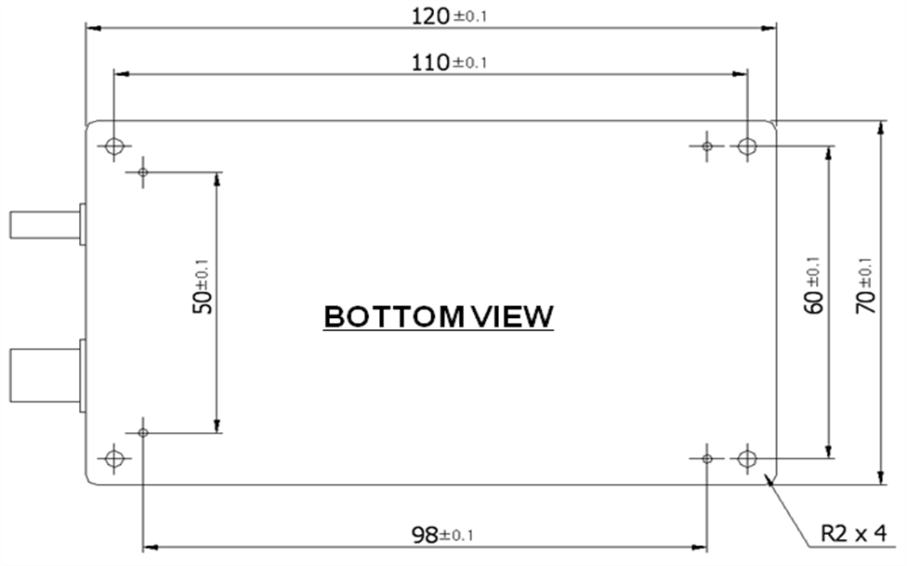

Mechanical Drawings:

The packaged size is 120mm X 70mm X 10mm for Mux/Demux.
