1x2 Mechanical Digital Optical Switch For All Wavelength Optical Communication

Ask Lasest Price
Brand Name :	HJY
Model Number :	HJY-FSW-5L-1-2-20
Certification :	CE, ROHS, FCC ISO9001
Price :	Please send inquiry to sales@huajiayu.com
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	100,000 pcs
Delivery Time :	3~7 working days

Add to Cart

Product Details
Company Profile

1x2 Mechanical Digital Optical Switch For All Wavelength Optical Communication

HJY s 1x2 Mechanical Optical Switch for All Wavelength Support and Bi-Directional Performance in Optical Communication

The 1x2 fiber optic switch connects optical channels by directing or blocking an incoming optical signal into the output fiber. This is achieved using a patent pending opto-mechanical configuration and activated via an electrical control signal. A latching version preserves the selected optical path after the drive signal has been removed, while the non-latching versions default to either the open or closed state when power is removed. The Fiber Optical Switch has integrated electrical position sensors. The new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as unmatched low cost

HJY' 1x2 Mechanical Optical Switch is not affected by the polarization and wavelength. It supports all wavelength at 850nm and 1260nm~1650nm, and it provides high reliability, low insertion loss, fast switching speed and bi-directional performance. They are widely used for multiplex OADM, cross connectors OXC, system testing and protection.

HJY' 1x2 Mechanical Optical Switch is used to turn on and turn off optical signal. The 1x2 Mechanical Optical Switch is based on Advanced Optoelectronic Integrated Technology. With the development of optical communication, Optical Switch device is the key to a new generation of all-optical network in near future.

Product Parameters

Operating Wavelength	1260~1620nm(SM) / 850nm(MM)	Insertion Loss	≤1.0dB
Wavelength Dependent Loss	≤0.25dB	Polarization Dependent Loss	≤0.05dB
Temperature Dependent Loss	≤0.20dB	Return Loss	SM≥50dB / MM≥30dB
Cross Talk	SM≥55dB / MM≥35dB	Switch Time	≤8ms
Repeatability	≤±0.02dB	Durability	≥10 times
Operating Voltage	3 or 5V	Switch Type	Non-Latching/Latching
Operating Temperature	－20~＋70℃	Storage Temperature	－40~＋85℃
Optical Power	≤500mW	Dimension	27.0L×12.0W×8.2H mm

Pin Definition

Type	Pin	Electric Drive				Status sensor
1×2	channel	1	5	6	10	2-3	3-4	7-8	8-9
Latching	P1-P2	V+	GND	--	--	Open	Close	Close	Open
Latching	P1-P3	--	--	GND	V+	Close	Open	Open	Close
Non-latching	P1-P2	V+	--	--	GND	Open	Close	Close	Open
Non-latching	P1-P3	--	--	--	--	Close	Open	Open	Close

Optical Route

Status One	Status Two

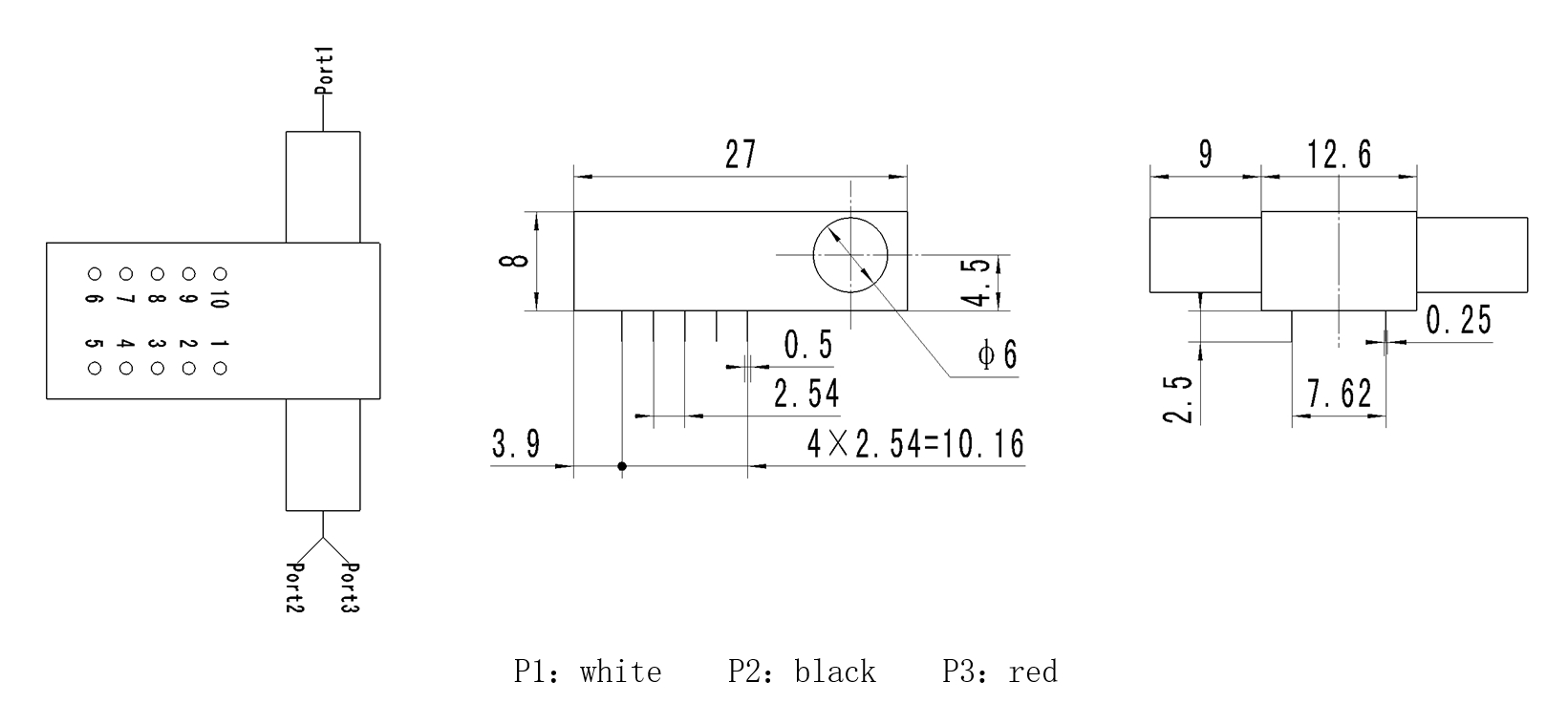

Dimension

1x2 Mechanical Digital Optical Switch For All Wavelength Optical Communication

Electric

Specifications	Voltage	Current	Resistance
5V latching	4.5~5.5	36~44mA	125Ω
5V non-latching	4.5~5.5	26~32mA	175Ω
3V latching	2.7~3.3	54~66mA	50Ω

Ordering Information:

HJY- FSW	Wavelength	Operating Voltage	Fiber Type	Tube Type	Fiber Length	Connector	Package
FSW-	0850—850 1315—1310&1550	3L—3v, latching 5L—5v, latching 3N—3v, Non-latching 5N—5v, Non-latching	1—SM 2—MM 62.5/125	1—250um 2—900um	00—special 05—0.5m±5cm 10—1m±5cm 15—1.5m±5cm 20—2 m ……	0—NO 1—FC/PC 2—FC/APC 3—SC/PC 4—SC/APC 5—LC/PC 6—LC/APC 7—Other	Bare fiber=1 900um tube=3 Special＝0
