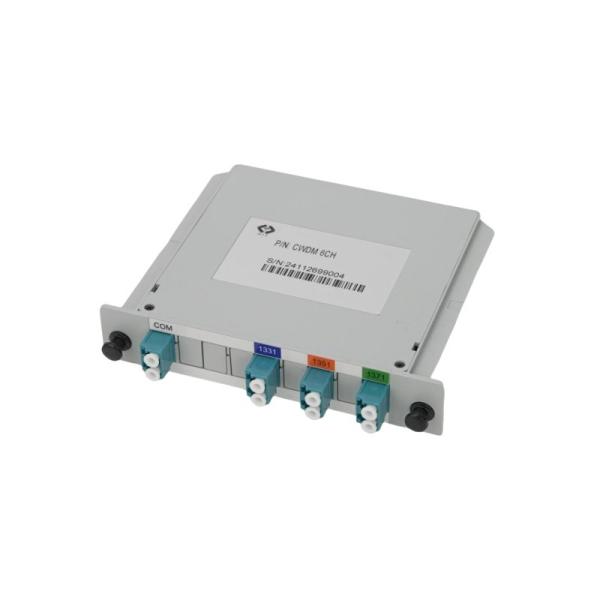

6 Channel Simplex CWDM MUXor DEMUX LGX Plastic Housing
Bidirectional Fiber for 5G Telecom
Elevate your 5G telecom infrastructure with our 6 Channel Simplex
CWDM MUX or DEMUX LGX unit in a durable plastic housing. Tailored
for the high - speed demands of 5G networks, this device is a game
- changer.
The six - channel design offers enhanced capacity, enabling
efficient handling of multiple optical signals. It features
bidirectional fiber technology, optimizing data transmission and
reducing the need for complex cabling setups. This not only cuts
costs but also simplifies installation and maintenance. Whether
you're multiplexing signals for long - haul transmission or
demultiplexing at the receiving end, its simplex operation ensures
reliable performance. Its plastic housing is lightweight yet robust, suitable
for various installation environments in 5G telecom deployments.
Simplex CWDM MUX and DEMUX
Multiplexer (MUX) and demultiplexer (DEMUX) are combined together
into a single piece of equipment for bi-directional data
transmission over one fiber.
Simplex Bi-Directional Transmission should be used in pairs,
MUX/DEMUX Portfor specific wavelength must be opposite CWDM
HJY CWDM Mux/Demux is a passive technology, it allows for any
protocol to be transported over the link, as long as it is at a
specific wavelength (i.e. T1 over fiber at 1570nm transported
alongside 10Gbps Ethernet at 1590nm). This allows for long-term
future proofing of the networking infrastructure because the
multiplexers simply refract light at any network speed, regardless
of the protocol being deployed.
HJY provides a complete portfolio of CWDM Mux Demux and Optical Add
Drop Multiplexer (OADM) units to suit all applications such as:
Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx
and CATV. And we provide optional port configurations such as:
Express Port, Monitor Port, 1310nm passband port and 1550nm port
for these multiplexers according to customer choice.
Maximize Your Fiber with WDM Network
A single fiber can be shared for multiple different data or
services in WDM network. It maximizes the usefulness of fiber and
generates substantial savings.
Mix of Services Multiplexing at Any Rate
Flexible mix of 1G/10G/25G/40G/100G/200G Ethernet, 8G/16G FC, SAN,
OTN, SDH/SONET and native video services, it's transparent to any
rate, any service multiplexing and upgrade
Product Specification
Wavelength | 1270-1610nm | Channel Spacing | 20nm |
Channel Passband | ±6.5nm | Technology | TFF (Thin Film Filter) |
Insertion Loss | Regular :≤ 5.4dB (With 8 Skip 0:≤3.0dB) | Link Loss(A+B) | Regular :≤ 6.2dB (With 8 Skip 0:≤4.0dB) |
Center Wavelength Accuracy | ±0.05nm | Return Loss | ≥ 45dB |
Directivity | ≥ 45dB | Polarization Mode Dispersion | ≤ 0.1ps |
Polarization Dependent Loss | ≤ 0.3dB | Channel Isolation | Adjacent ≥30dB Non-adjacent ≥45dB |
Connector | LC/UPC | Temperature | Operating -40 to 85°C Storage -40 to 85°C |
Net Weight | LGX Box Plastic 0.1KG | Dimensions (HxWxD) | LGX Box Plastic 20*15*9cm |
Note: Specified with connectors.
