6 Channel CWDM MUX or DEMUX LGX Box Plastic Simplex BIDI
Transmission for Telecom Communitcation

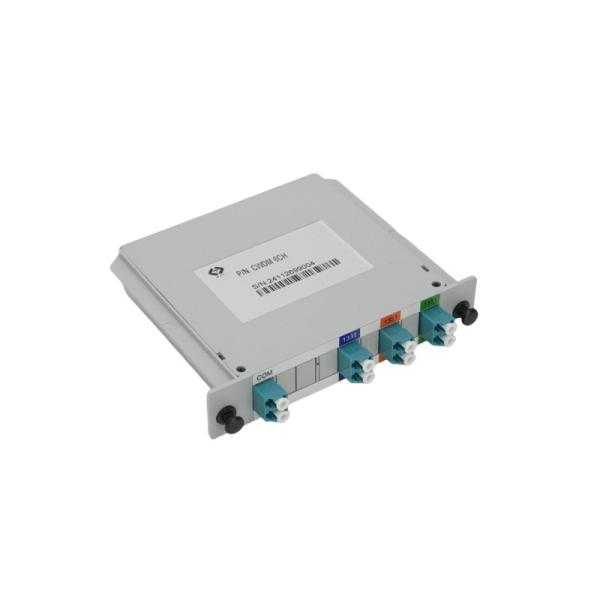

Introducing our 6 Channel CWDM MUX or DEMUX LGX Box, crafted from
durable plastic, designed specifically for telecom communication.
This compact yet powerful device features simplex BIDI
(Bidirectional) transmission, simplifying fiber optic connections
and reducing infrastructure costs.
With six channels, it offers a practical solution for multiplexing
or demultiplexing optical signals in telecom networks. Whether you
need to combine multiple wavelengths into a single fiber or
separate them, this LGX box has got you covered. It ensures
reliable data transfer, meeting the high - demand requirements of
modern telecom applications. Its easy - to - install design makes
it a go - to choice for network upgrades or new installations,
providing seamless integration into existing telecom setups.

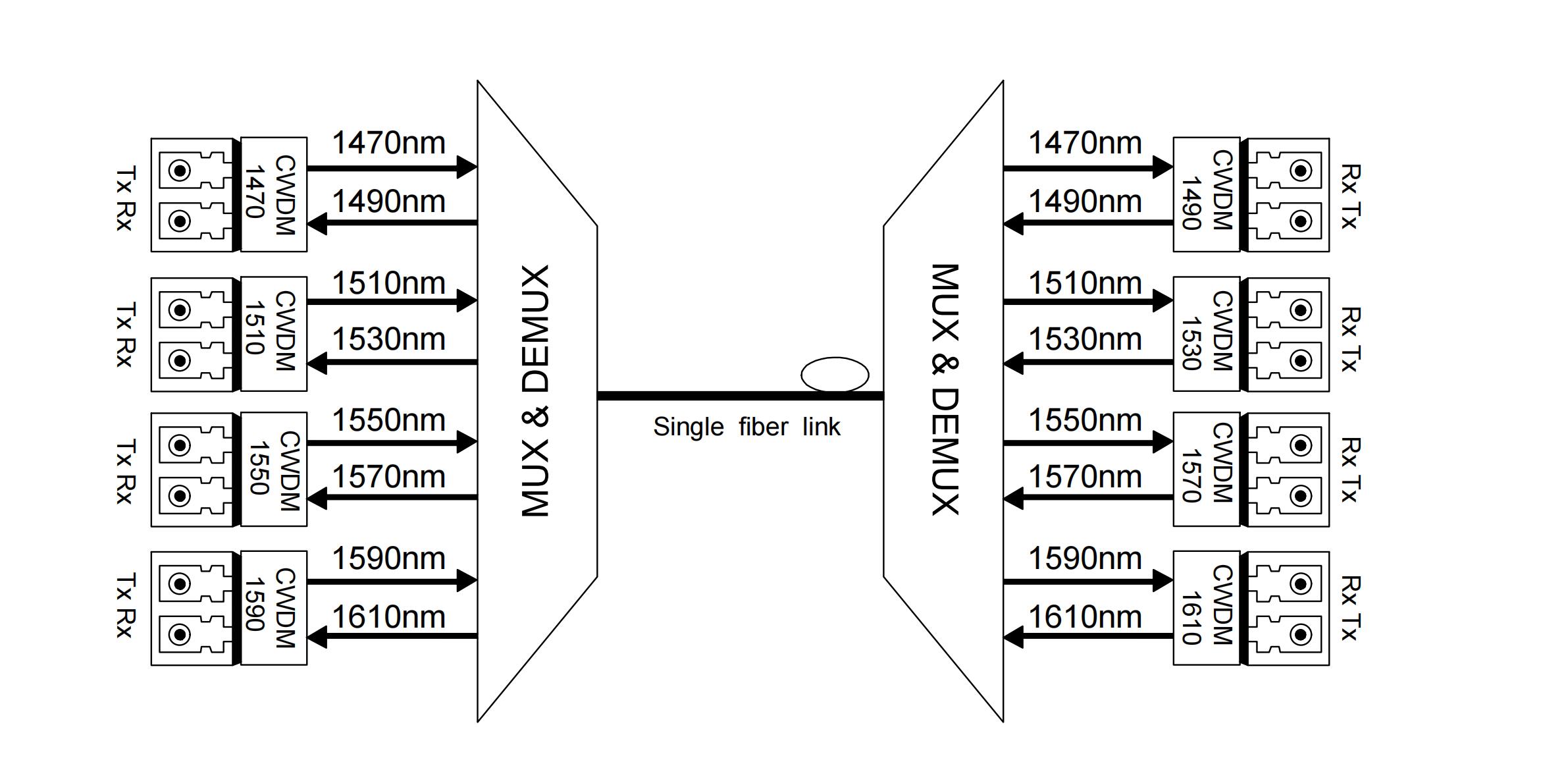

Simplex CWDM MUX and DEMUX
Multiplexer (MUX) and demultiplexer (DEMUX) are combined together
into a single piece of equipment for bi-directional data
transmission over one fiber.
Simplex Bi-Directional Transmission should be used in pairs,
MUX/DEMUX Portfor specific wavelength must be opposite CWDM
HJY CWDM Mux/Demux is a passive technology, it allows for any
protocol to be transported over the link, as long as it is at a
specific wavelength (i.e. T1 over fiber at 1570nm transported
alongside 10Gbps Ethernet at 1590nm). This allows for long-term
future proofing of the networking infrastructure because the
multiplexers simply refract light at any network speed, regardless
of the protocol being deployed.
HJY provides a complete portfolio of CWDM Mux Demux and Optical Add
Drop Multiplexer (OADM) units to suit all applications such as:
Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx
and CATV. And we provide optional port configurations such as:
Express Port, Monitor Port, 1310nm passband port and 1550nm port
for these multiplexers according to customer choice.
Maximize Your Fiber with WDM Network
A single fiber can be shared for multiple different data or
services in WDM network. It maximizes the usefulness of fiber and
generates substantial savings.
Mix of Services Multiplexing at Any Rate
Flexible mix of 1G/10G/25G/40G/100G/200G Ethernet, 8G/16G FC, SAN,
OTN, SDH/SONET and native video services, it's transparent to any
rate, any service multiplexing and upgrade
Product Specification
Wavelength | 1270-1610nm | Channel Spacing | 20nm |
Channel Passband | ±6.5nm | Technology | TFF (Thin Film Filter) |
Insertion Loss | Regular :≤ 5.4dB (With 8 Skip 0:≤3.0dB) | Link Loss(A+B) | Regular :≤ 6.2dB (With 8 Skip 0:≤4.0dB) |
Center Wavelength Accuracy | ±0.05nm | Return Loss | ≥ 45dB |
Directivity | ≥ 45dB | Polarization Mode Dispersion | ≤ 0.1ps |
Polarization Dependent Loss | ≤ 0.3dB | Channel Isolation | Adjacent ≥30dB Non-adjacent ≥45dB |
Connector | LC/UPC | Temperature | Operating -40 to 85°C Storage -40 to 85°C |
Net Weight | LGX Box Plastic 0.1KG | Dimensions (HxWxD) | LGX Box Plastic 20*15*9cm |
Note: Specified with connectors.
